Brass Copper Fittings (INDIA) offers cast bronze sleeve bearings in over 900 sizes from stock. Cast bronze sleeve bearings are available as plain sleeve bearings, grease or oil grooved bearings, graphite-filled grooved bearings and in graphite-filled plug type bearing configurations. Special alloy and machined to print bronze bearings are available up to 124" (3147mm) in diameter.
C93200 (SAE 660) Bronze Sleeve Bearing Sizes:
3/16" ID through 1/2" ID
1-3/8" ID through 1-1/2" ID
9/16" ID through 11/16" ID
1-9/16" ID through 1-7/8" ID
3/4" ID through 7/8" ID
1-15/16" ID through 2-3/8" ID
15/16" ID through 1-1/8" ID
2-7/16" ID through 3" ID
1-3/16" ID through 1-5/16" ID
3-1/4" ID through 5" ID
Do you need to make modifications to your bearings?
Running Clearance (Click photo to enlarge)
Greater than normal clearance must be allowed: (1) if exceptionally high speed is involved or (2) if higher than normal loading is encountered.

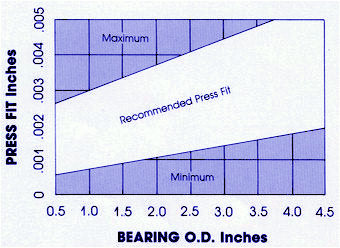

Press Fits (Click photo to enlarge)
Less than normal press fit proves satisfactory: (1) if the bearing is long and the wall is not exceptionally thin and (2) if the bearing is also carrying a moderate load exerted in one direction.
PV Calculation :
PV is a means of measuring the performance capabilities of bearings. P is expressed as pressure or pounds per square inch on the area of the bearing. V is velocity in feet per minute of the wear surface (surface feet per minute).
For sleeve bearings, the surface speed is .262 (pi÷12) x RPM x shaft diameter in inches. P is equal to the load on the bearing in pounds divided by the projected area in square inches. For sleeve bearings, the projected area is the length x the inside diameter of the bearing. PV is then obtained by multiplying P x V as shown in the following example:
3/4" shaft @ 341 RPM, 90 lb. total load, bearing length 1".
V = .262 x RPM x shaft diameter, or .262 x 341 x .750 = 67 sfpm.
P = total load ÷ projected area (area = .750 x 1.0 = .75 in.), or 90 lbs. ÷ .75 = 120 psi.
PV = 120 psi x 67 sfpm = 8040 PV
Bearing Tolerances:
Inside Diameter under 3"
Plus or minus .001"
Inside Diameter 3" and Over
Plus or minus .0015"
Outside Diameter up to and including 3"
Plus .002" to .003"
Outside Diameter above 3"
Plus .003" to .005"
All Lengths
Plus or minus .005"
Normal Concentricity
0.003 T.I.R. MAX.
Minimum Physical Properties:
Copper
81.0 - 85.0%
Tin
6.3 - 7.5%
Lead
6.0 - 8.0%
Zinc
2.0 - 4.0%
All Lengths
Plus or minus .005"
Chemical Composition:
Tensile Strength, PSI
35,000
Yield Strength, PSI
20,000
Elongation in 2 inches
10%
Brinell Hardness @ 500 KG Load
65
Pressure & Velocity Ratings:
Max. PV
75,000
Max. P
4,000
Max. V
750
Please contact us for all your needs of
C93200/SAE 660 Bronze Plain Sleeve Bearings
at best prices from India. We are the biggest foundry casting alloy indian manufacturers exporters foundries in Jamnagar of
